Water Pumps

Reliable water handling solutions for municipal, industrial, and commercial applications

Get Quote Download Catalog

Axially Split General Industrial Pumps

The single stage LR and LRV and the two stages LLR family of pumps are part of a broad range of axially split, heavy-duty between bearings pumps. These pumps complement the similarly designed LNN and LNNV. Together these products offer 150 impeller-volute combinations, industry's largest array of efficient hydraulic solutions.

Typical Industries Served

🏗️
Building trades
🔧
Building services
⚙️
OEM
🍽️
Food and beverage
⛏️
Mining
🔗
Steel
⚡
Utility
💊
Pharmaceutical
💧
Water distribution
🚰
Wastewater
🌾
Agriculture
📄
Pulp and paper
🛞
Rubber
🛢️
Petroleum

LR (29 Sizes)

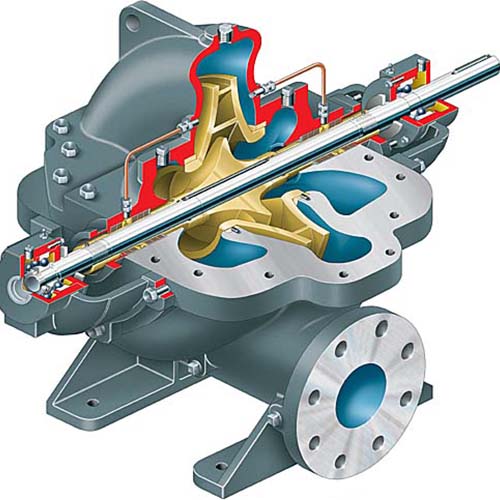

LR Axially Split General Industrial Pump

Operating Parameters

⚡
Standard flows to 2000 m3/h (8800 USgpm)
📊
Heads to 70m (560 ft)
⚙️
Pressures to 21 bar (300 psi)
🌡️
Temperatures from -30°C (-20°F) to 150°C (300°F)

LRV Vertical Shaft Design

•
Small footprint reduces floor space requirement
•
Pump parts interchangeable with LR design
•
Maintenance free, product lubricated bottom bearing eliminates the need for mechanical seal and ball bearing

LRV (20 Sizes)

LRV Vertical Shaft Pump

Operating Parameters

⚡
Flows to 2000 m3/h (8800 US gpm)
📊
Heads to 137 m (450 ft)
⚙️
Pressures to 21 bar (300 psi)
🌡️
Temperatures from -30°C (-20°F) to 150°C (300°F)

LLR Two Stage Design for High Head Applications

•
Back-to-back mounted, single suction impellers reduce axial thrust, prolonging bearing life
•
First and second stage volutes spaced 180° apart to balance radial loads, thereby reducing deflection and prolonging bearing life
•
Crossover cast-in upper casing half provides the rigidity necessary for high pressure applications
•
Interstage bushing minimizes interstage leaking and maximizes efficiency
•
Back-to-back mounted duplex angular contact thrust bearing

LLR (6 Sizes)

LLR Two Stage Pump

Operating Parameters

⚡
Flows to 295 m3/h (1300 US gpm)
📊
Heads to 290 m (950 ft)
⚙️
Pressures to 31 bar (450 psi)
🌡️
Temperatures from -30°C (-20°F) to 150°C (300°F)

LNN

Between Bearing, AxiaLLy Split, Single Stage, Double Suction Pump

The Flowserve LNN and associated double suction axially split pumps are available with 145 impeller and volute combinations. As a result Flowserve provides the most options for highest efficiency operation in all water applications.

Typical Applications

Water cooling
— Cooling tower
— Circulating
High and low water lift
Raw water transfer
Cargo loading and unloading
Heating, ventilation and air condition fling
Low pressure pipeline
Fire protection
Irrigation
Crude oil transfer
Seawater circulation
Marine services
LNN Double Suction Pump

Operating Parameters

⚡
Flows to 51 000 m3/h (225 000 gpm)
📊
Heads to 300 m (985 ft)
📏
Sizes 125 mm (5 in) to 1200 mm (48 in)
⚙️
Pressures to 30 bar (435 psi)
🌡️
Temperatures to 150°C (302°F)

Need Water Pump Solutions?

Our water pump specialists can help you select the right solution for your specific water handling requirements.

Contact Water Specialists Download Specifications
