API Pumps

HPX API 610 Hydrocarbon Processing Pumps for demanding petroleum industry standards

Get Quote Download Catalog

HPX API 610 Hydrocarbon Processing Pump

The Flowserve HPX pump is the workhorse of the hydrocarbon processing industry due to its unequaled versatility, reliability and safety. Fully compliant with API 610 latest edition design standards, the HPX pump is of horizontal, end suction — top discharge, overhung, centerline mounted configuration.

HPX API 610 Hydrocarbon Processing Pump
✓

Broad Application

Petroleum refining, production and distribution
Petrochemical and heavy duty chemical processing
Gas industry services
Boiler circulation and other high temperature services
Water and general industrial

Operating Parameters

⚡
Flows to 2000 m3/h (9000 gpm)
📊
Heads to 450 m (1500 ft)
🌡️
Temperatures from -100°C (-250°F) to 450°C (850°F)
⚙️
Pressures to 80 bar (1160 psi)
📋

Rated Flow Ranges as to ASME B16.5 criteria for Class 300 or 600.

Surface finish meets API 610 standard. ISO and SI flanges are available.

🔧

Centerline Supported Pump Casing

⚡

Nozzle loads beyond API 610 design requirements.

Minimal shaft misalignment for extended rotor bearing and seal life.

SINGLE CASE PUMPS – RADIALLY SPLIT – HDX / HDX – TT

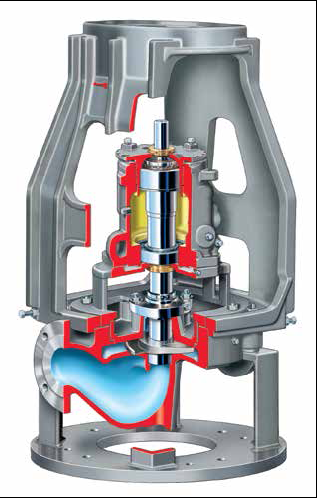

HDX Radially Split Double-Suction Pump
🔧
Single-Stage Radially Split Double-Suction HDX, HDX-H
Flows to 4100 m3/h (18,000 gpm)
Heads to 450 m (1500 ft)
Pressures to 100 bar (1450 psi)
Temperatures to 450°C (842°F)
🔄
HDX-TT Recovery Turbine
Flows to 4100 m3/h (18,000 gpm)
Heads to 760 m (2500 ft)

Need More Information?

Contact our technical experts for detailed specifications, sizing, and application guidance for API pumps.

Contact Technical Team Download Datasheets
